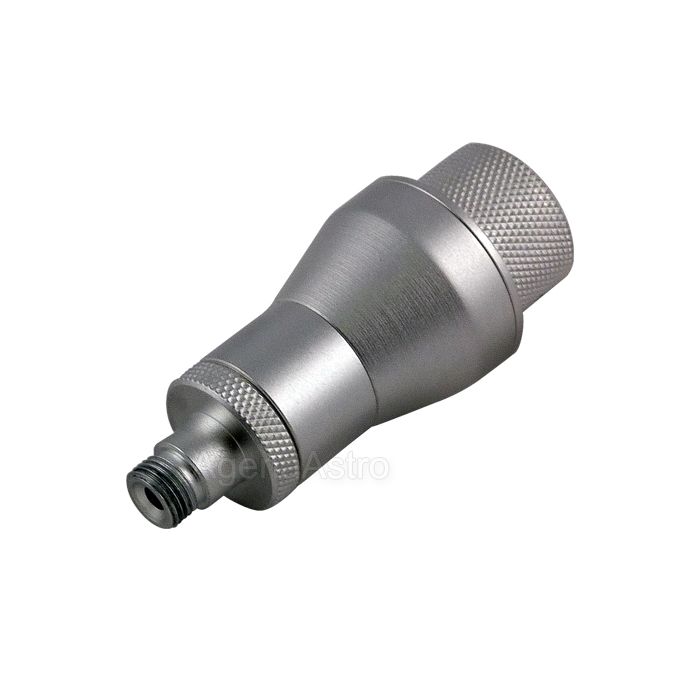

This is the same illuminator that we include with our popular Agena 20mm SWA and 20mm Reticle Eyepieces. It is also offered separately as a replacement illuminator for many brands of reticle eyepieces on the market.
The adjustable brightness red LED (light emitting diode) illuminator features an all metal body with combination On/Off switch. It is threaded at one end to fit reticle eyepieces with a standard 8mm female threaded port (M8x0.75 thread specification). Requires two LR44 batteries (included). Weight = 1.1oz. Made in China.
This item has been tested to fit and work well with the following reticle eyepieces which feature an M8x0.75 thread:
- Agena 20mm SWA Cordless IRE (E-AG-SWA20IRE)
- Agena 24mm Cordless XRE (E-AG-24XRE)
- Antares 1.25" Illuminated Reticle Kellner Eyepiece - 10mm (# IRK10)
- Antares 1.25" Illuminated Reticle Kellner Eyepiece - 27mm (# IRK27)
- Astro-Tech 24mm Illuminated Centering Eyepiece (# AT24IL)
- Celestron 1.25" Micro Guide Eyepiece - 12.5mm (# 94171)
- Meade 1.25" Plossl Wireless IRE - 9mm (# 07068)
- Meade 1.25" Wireless IRE - MA 12mm (# 07066)
- Meade 1.25" Wireless IR Astrometric Eyepiece - MA 12mm (# 07069)
- Meade 1.25" Plossl CCD Framing Eyepiece - 25mm (# 07568)
- Orion 20mm Illuminated Centering Telescope Eyepiece (# 08239)
- Agena 12.5mm Cordless IRE (E-AG-IRE12.5)
- Celestron 50mm Right Angle Finder (# 93781):
- Celestron CrossAim Reticle Eyepiece (# 93235)
If your reticle eyepiece is not listed above, then we cannot confirm whether this item will work for you or not.
Other Information
- Country of Manufacture: China
